| IMAGING |
|
| |
|
| Lens Mount |
Leica L
|
| Sensor Resolution |
Actual: 25.28 Megapixel
|
| |
Effective: 24.2 Megapixel (6000 x 4000) |
| Image Sensor |
35.6 x 23.8 mm (Full-Frame) CMOS
|
| Image Stabilization |
Sensor-Shift, 5-Axis
|
| Capture Type |
Stills & Video
|
| |
|
| EXPOSURE CONTROL |
|
| |
|
| Shutter Type |
Electronic Shutter, Mechanical Focal Plane Shutter
|
| Shutter Speed |
Mechanical Shutter
|
| |
1/8000 to 60 Seconds |
| |
Up to 30 Minutes in Bulb Mode |
| |
Electronic Front Curtain Shutter |
| |
1/2000 to 60 Seconds |
| |
Up to 30 Minutes in Bulb Mode |
| |
Electronic Shutter |
| |
1/8000 to 60 Seconds |
| |
Up to 60 Seconds in Bulb Mode |
| Bulb/Time Mode |
Bulb Mode, Time Mode
|
| ISO Sensitivity |
Photo/Video
|
| |
100 to 51,200 (Extended: 50 to 204,800) |
| Metering Method |
Center-Weighted Average, Highlight Weighted, Multiple, Spot
|
| Exposure Modes |
Aperture Priority, Auto, Manual, Program, Shutter Priority
|
| Exposure Compensation |
-5 to +5 EV (1/3 EV Steps)
|
| Metering Range |
0 to 18 EV
|
| White Balance |
2500 to 10,000K
|
| |
Presets: AWB, Cloudy, Colour Temperature, Daylight, Flash, Incandescent,
Shade, White Set 1, White Set 2, White Set 3, White Set 4 |
| Continuous Shooting |
Mechanical Shutter
|
| |
Up to 9 fps for up to 200 Frames (Raw) / 300 Frames (JPEG) |
| |
Up to 5 fps for up to 200 Frames (Raw) / 300 Frames (JPEG) |
| |
Up to 2 fps for up to 200 Frames (Raw) / 300 Frames (JPEG) |
| |
Electronic Shutter |
| |
Up to 30 fps for up to 200 Frames (Raw) / 200 Frames (JPEG) |
| |
Up to 9 fps for up to 200 Frames (Raw) / 300 Frames (JPEG) |
| |
Up to 5 fps for up to 200 Frames (Raw) / 300 Frames (JPEG) |
| |
Up to 2 fps for up to 200 Frames (Raw) / 300 Frames (JPEG) |
| Interval Recording |
Yes
|
| Self-Timer |
2/10-Second Delay
|
| |
|
| STILL IMAGE CAPTURE |
|
| |
|
| Image Sizes |
0.126388889
|
| |
96 MP (12,000 x 8000) *Via In-Camera Pixel-Shift |
| |
96 MP (8496 x 5664) *Via In-Camera Pixel-Shift |
| |
24.2 MP (6000 x 4000) |
| |
24.2 MP (4272 x 2848) |
| |
24.2 MP (3024 x 2016) |
| |
0.16875 |
| |
96 MP (10,656 x 8000) *Via In-Camera Pixel-Shift |
| |
96 MP (7552 x 5664) *Via In-Camera Pixel-Shift |
| |
24.2 MP (5328 x 4000) |
| |
24.2 MP (3792 x 2848) |
| |
24.2 MP (2688 x 2016) |
| |
0.672916667 |
| |
96 MP (12,000 x 6736) *Via In-Camera Pixel-Shift |
| |
96 MP (8496 x 4784) *Via In-Camera Pixel-Shift |
| |
24.2 MP (6000 x 3368) |
| |
24.2 MP (4272 x 2400) |
| |
24.2 MP (3024 x 1704) |
| |
0.042361111 |
| |
96 MP (8000 x 8000) *Via In-Camera Pixel-Shift |
| |
96 MP (5664 x 5664) *Via In-Camera Pixel-Shift |
| |
24.2 MP (4000 x 4000) |
| |
24.2 MP (2848 x 2848) |
| |
24.2 MP (2016 x 2016) |
| |
2.725 |
| |
24.2 MP (6000 x 2208) |
| |
0.084027778 |
| |
24.2 MP (6000 x 3000) |
| Aspect Ratio |
1:1, 2:1, 3:2, 4:3, 16:9, 65:24
|
| Image File Format |
JPEG, Raw
|
| Bit Depth |
14-Bit
|
| |
|
| VIDEO CAPTURE |
|
| |
|
| Internal Recording Modes |
H.264/H.265/MOV/MP4/ProRes 4:2:2/4:2:0 8/10-Bit
|
| |
5952 x 3968 at 23.98/24.00/25/29.97 fps [200 Mb/s] |
| |
5952 x 3136 at 23.98/24.00/25/29.97 fps [200 Mb/s] |
| |
5888 x 3312 at 23.98/24.00/25/29.97 fps [200 Mb/s] |
| |
4096 x 2160 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94 fps [150 to 200 Mb/s] |
| |
3840 x 2160 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94 fps [150 to 200 Mb/s] |
| |
1920 x 1080 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94/100 fps [20 to 454 Mb/s] |
| External Recording Modes |
12-Bit via HDMI
|
| |
5888 x 3312 at 23.98/25/29.97 fps |
| |
10-Bit via USB |
| |
5776 x 3056 at 23.98/24.00/25/29.97 fps |
| |
4096 x 2160 at 23.98/24.00/25/29.97 fps |
| |
1920 x 1080 at 24.00/25/50 fps |
| Sensor Crop Modes |
Super35 / APS-C
|
| |
4096 x 2160 |
| |
3840 x 2160 |
| |
3328 x 2496 |
| |
1920 x 1080 |
| Fast-/Slow-Motion Support |
Yes
|
| Gamma Curve |
Panasonic V-Gamut, V-Log
|
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
RTP, RTSP
|
| |
3840 x 2160 to 1280 x 720 at 25p, 29.97p, 50p, 59.94p (4.0 to 25.00 Mb/s) |
| Built-In Microphone Type |
Stereo
|
| Audio Recording |
MOV: 2-Channel 24-Bit 48 kHz LPCM Audio
|
| |
MP4: 2-Channel 16-Bit 48 kHz AAC Audio |
| |
|
| INTERFACE |
|
| |
|
| Media/Memory Card Slot |
Dual Slot: SD/SDHC/SDXC (UHS-II)
|
| Video I/O |
1 x HDMI Output |
| Audio I/O |
1 x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Output |
| |
1 x 1/8" / 3.5 mm TRRS Headphone/Mic Microphone Input |
| Power I/O |
1 x USB-C Input/Output |
| Other I/O |
1 x USB-C Data Input/Output (Shared with Power Input) |
| Wireless |
2.4 / 5 GHz Wi-Fi (802.11b/g), Wi-Fi 5 (802.11ac), Bluetooth 5.0
|
| Mobile App Compatible |
Yes: Android & iOS
|
| |
App Name: Lumix Sync |
| |
Functionality: Access Stored Files, Firmware Update, Remote Control |
| |
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| |
|
| MONITOR |
|
| |
|
| Display Size |
3"
|
| Resolution |
1,840,000 Dot
|
| Display Type |

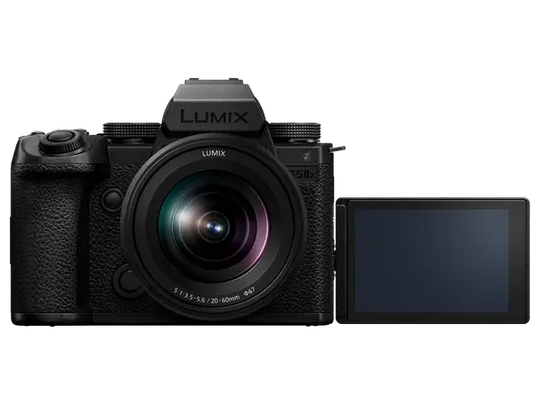

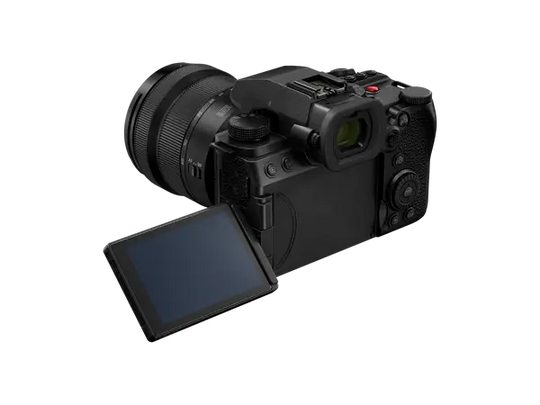

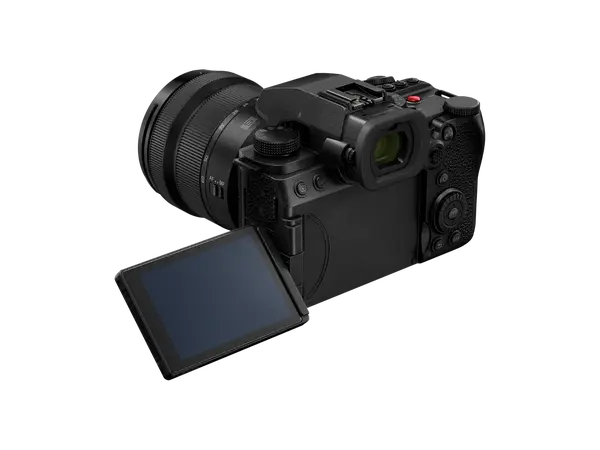

Free-Angle Tilting Touchscreen LCD
|
| |
|
| VIEWFINDER |
|
| |
|
| Type |
Built-In Electronic (OLED)
|
| Resolution |
3,680,000 Dot
|
| Eye Point |
21 mm
|
| Coverage |
1
|
| Magnification |
Approx. 0.78x
|
| Diopter Adjustment |
-4 to +2
|
| |
|
| FOCUS |
|
| |
|
| Focus Type |
Auto and Manual Focus
|
| Focus Mode |
Continuous-Servo AF, Manual Focus, Single-Servo AF
|
| Autofocus Points |
Photo, Video
|
| |
Contrast Detection, Phase Detection: 779 |
| Autofocus Sensitivity |
-6 to +18 EV
|
| |
|
| FLASH |
|
| |
|
| Flash Modes |
Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction,
Slow Sync, Slow Sync/Red-Eye Reduction
|
| Maximum Sync Speed |
1/250 Second
|
| Flash Compensation |
-3 to +3 EV (1/3 EV Steps)
|
| Dedicated Flash System |
TTL
|
| External Flash Connection |
Shoe Mount
|
| |
|
| ENVIRONMENTAL |
|
| |
|
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
| Operating Humidity |
10 to 80%
|
| |
|
| GENERAL |
|
| |
|
| Battery Type |
1 x Rechargeable Lithium-Ion, 7.2 VDC, 2200 mAh (Approx. 370 Shots) |
| Tripod Mounting Thread |
1 x 1/4"-20 Female (Bottom) |
| Accessory Mounting Thread |
1 x on Camera Body |
| Material of Construction |
Magnesium Alloy
|
| Dimensions (W x H x D) |
13.44 x 10.24 x 9.02 cm (Without Protrusions)
|
| Weight |
0.658 kg (Body Only)
|
| |
0.744 kg (With Recording Media) |
| |
|
| PANASONIC LUMIX S 20-60MM F/3.5-5.6 LENS |
|
| |
|
| Focal Length |
20 to 60mm
|
| Maximum Aperture |
f/3.5 to 5.6
|
| Lens Mount |
Leica L
|
| Lens Format Coverage |
Full-Frame
|
| Focus Type |
Autofocus
|
| Filter Size |
67 mm (Front)
|
|
Maximum Aperture
|
f/3.5 to 5.6
|
| Minimum Aperture |
f/22
|
| Lens Mount |
Leica L
|
| Lens Format Coverage |
Full-Frame
|
| Angle of View |
94° to 40°
|
| Minimum Focus Distance |
5.91" / 15 cm
|
| Maximum Magnification |
0.43x
|
| Optical Design |
11 Elements in 9 Groups
|
| Diaphragm Blades |
9, Rounded
|
| Focus Type |
Autofocus
|
| Filter Size |
67 mm (Front)
|
| Dimensions (ø x L) |
7.74 x 8.72 cm
|
| Length at Maximum Extension |
11.97 cm
|
| Weight |
0.350 kg
|
