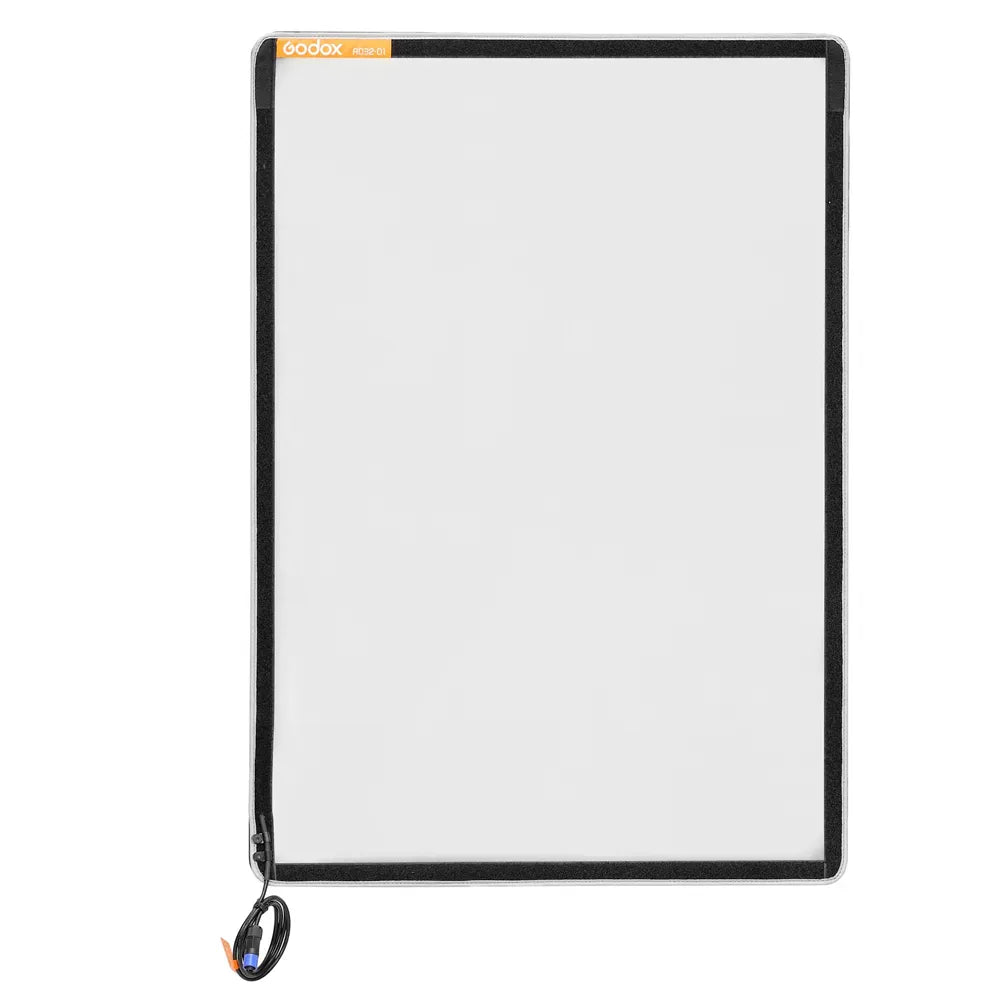

The Godox AD32 Electronic Diffuser is a 90×63 cm adjustable diffusion panel in the KNOWLED AD-Series. It offers electronically controlled diffusion, enabling seamless transitions from hard, specular light to ultra-soft illumination via a motorized system. Ideal for photographers, cinematographers, and lighting designers, it supports Level (0–100%) and Light Reduction (–0.1 to –2 EV) modes. Control it onboard, via Bluetooth app, DMX, or CRMX (controller version dependent), offering excellent flexibility on set. The panel features a foldable, IP54-rated frame, detachable diffusion fabric, and an included padded carry case for portability and protection.
What's in the box?
GODOX AD32 ELECTRONIC DIFUSSER 90X63cm + CASE
Tech specs
| Specification | Details |
|---|
| Model | AD32 (90 × 63 cm) Electronic Diffuser with Case |
| Panel Size | 90 × 63 cm (35.4″ × 24.8″) |
| Diffusion Control Modes | – Level Mode: 0–100% – Light Reduction Mode: –0.1 to –2 EV |
| Power Options | V-mount, NPF, or USB-C |
| Runtime | Up to 20 h continuous with 100 Wh V-mount battery |

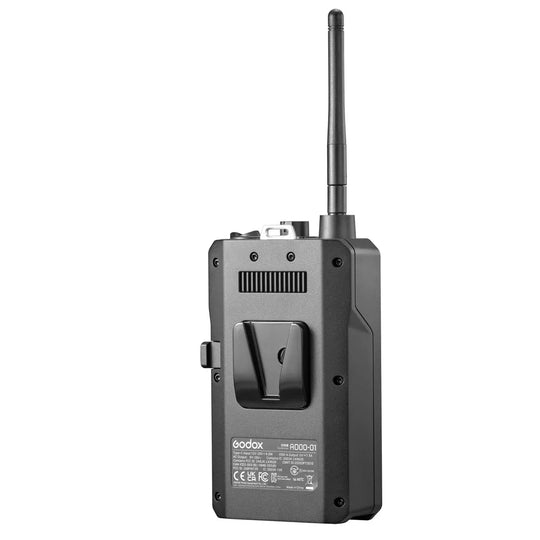

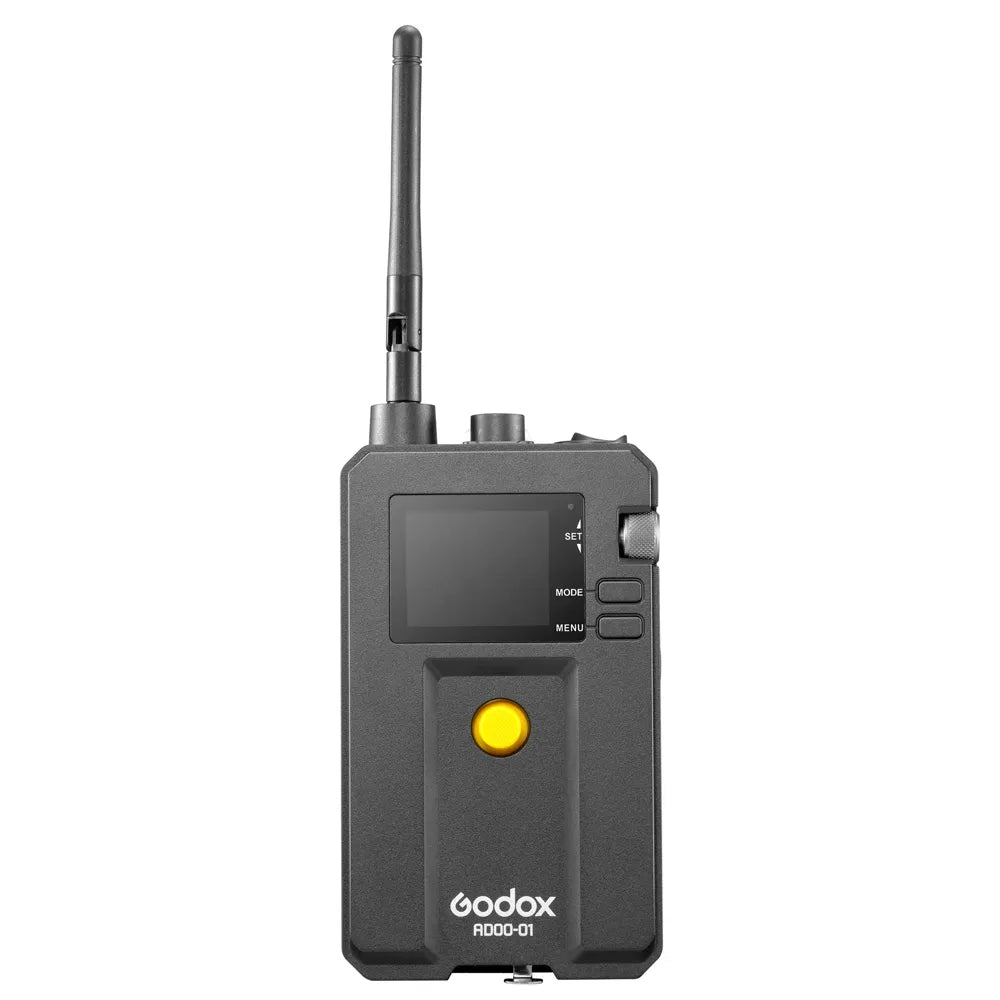

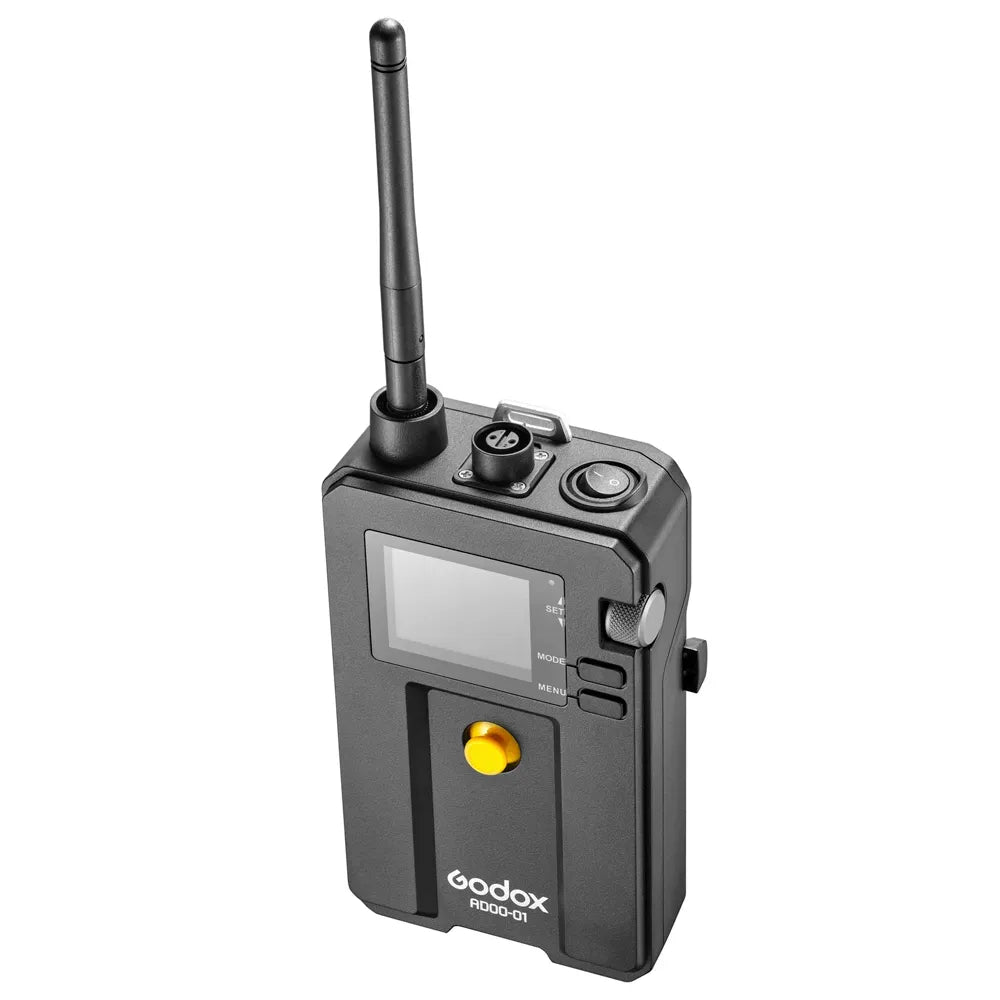

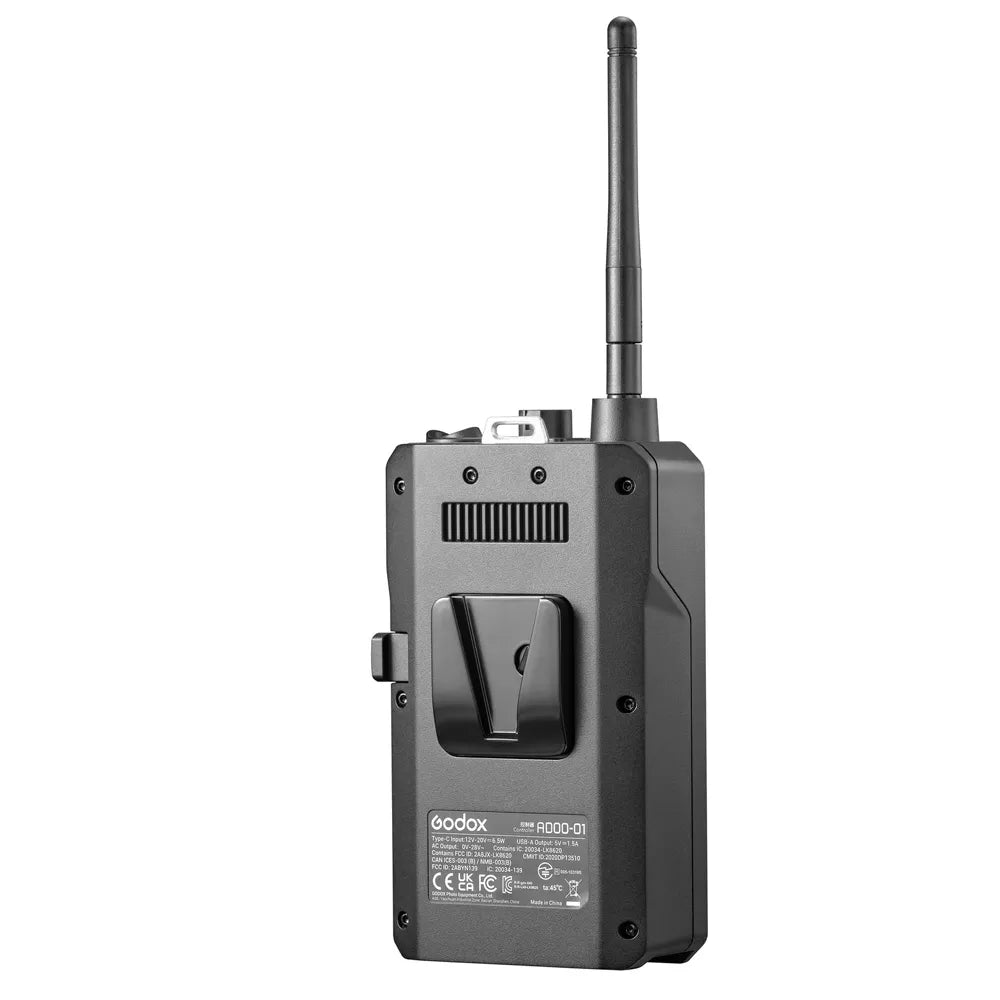

| Control Interfaces | Onboard controller, Bluetooth app, DMX, and CRMX via AD00‑01 controller |
| Flicker-Free Technology | Patented frequency adjustment with 5 levels, suitable up to 300 fps |

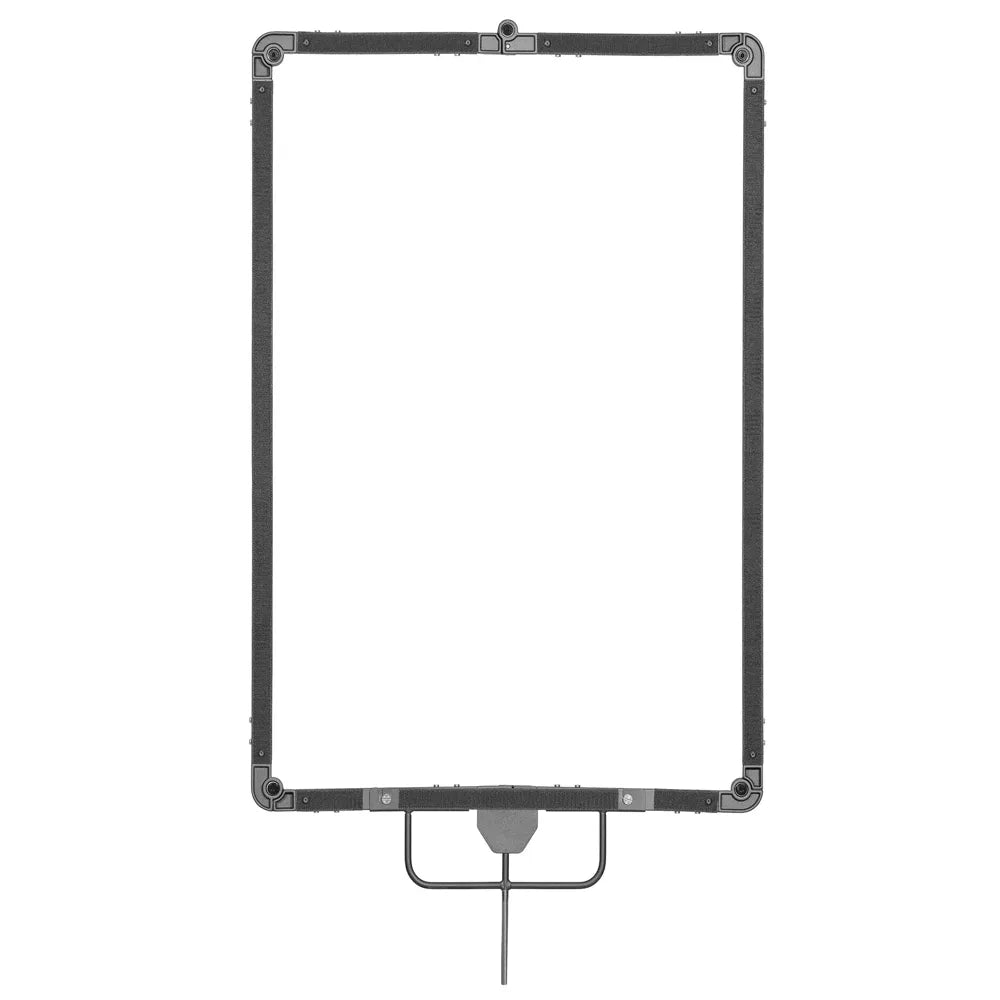

| Frame Design | Collapsible, detachable diffusion via Velcro, IP54 rated |
| Weight | Approx. 0.25 kg (not including controller/battery) |

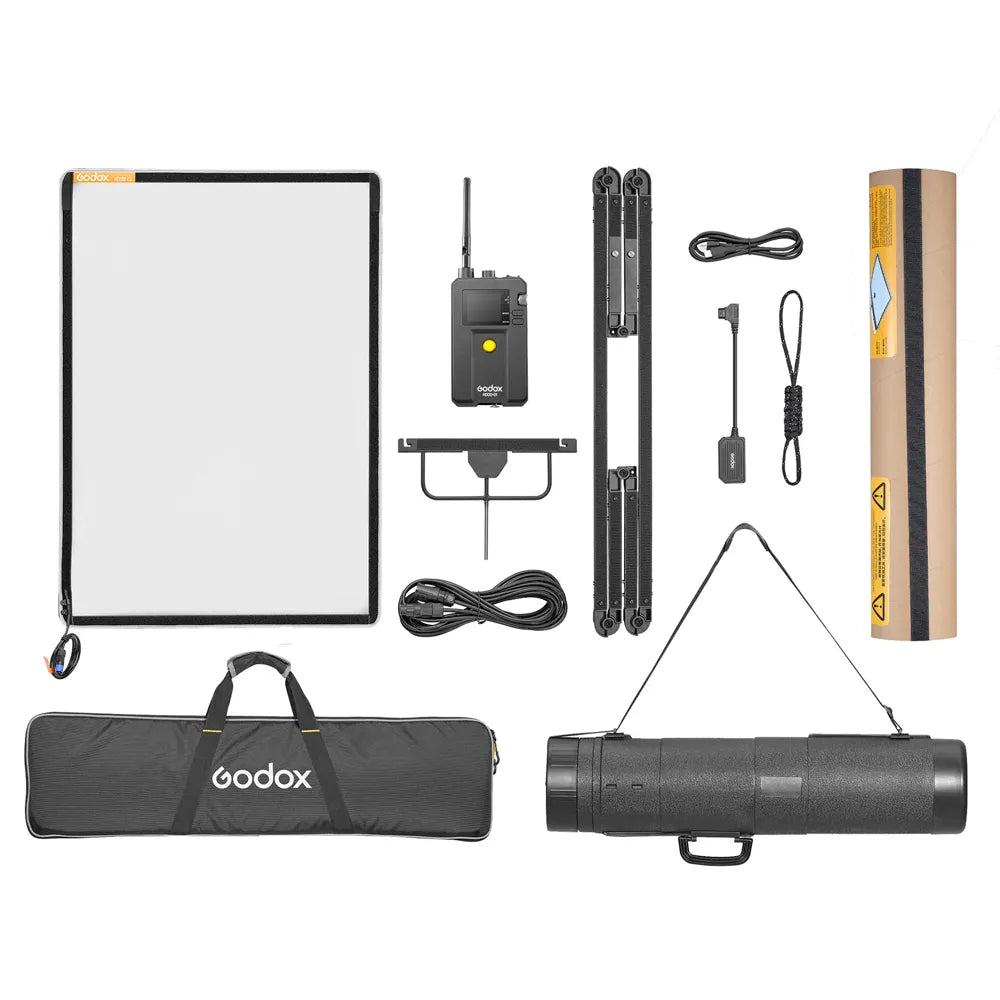

| Included Accessories | Panel, frame, controller, AC cable, USB-C cable, D-tap cable, reel, tube, padded carry case |
