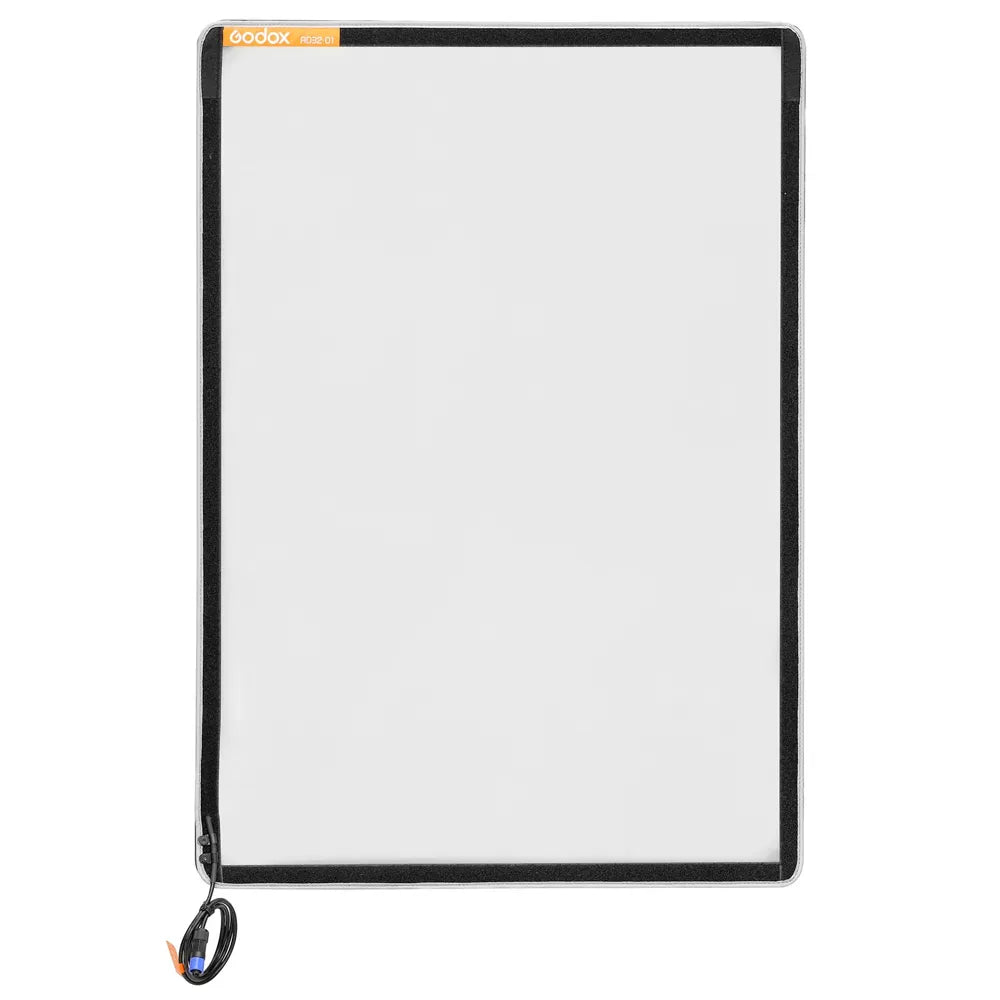

The Godox AD21 Electronic Diffuser (40 × 60 cm) is part of the innovative KNOWLED AD-Series—an electrically adjustable diffusion panel that lets you dial in the exact softness you need, transitioning smoothly from hard-edged specular light to ultra-soft diffusion via a simple control interface. Powered by V-lock batteries (or USB-C/NP-F via controller), and controllable through DMX, CRMX, or Bluetooth, the AD21 is built for dynamic sets and fast-paced workflows. Its collapsible IP54-rated frame makes for quick deployment, and it ships with a protective carry case, making it ideal for on-location and studio use.

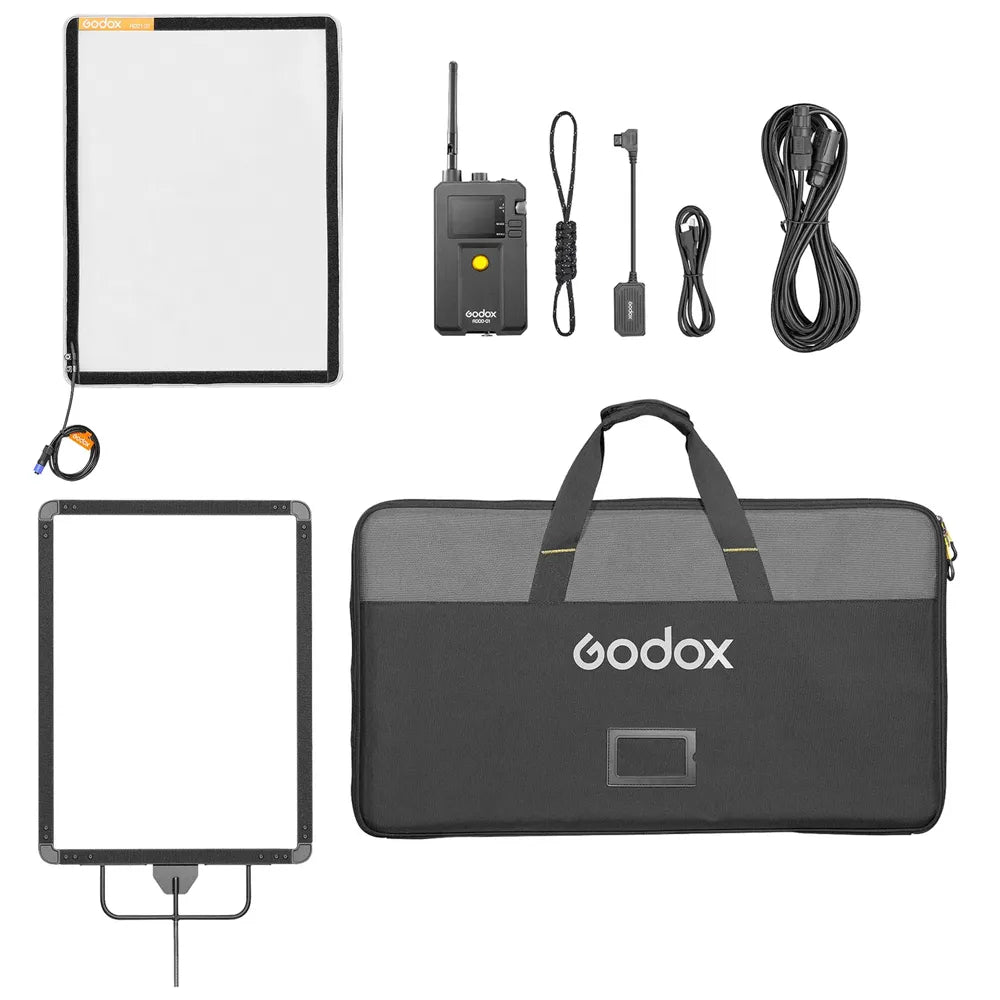

What's in the box?
GODOX AD21 ELECTRONIC DIFUSSER 40X60cm + CASE
Tech specs
| Specification | Details |
|---|
| Model | AD21-01 Electronic Diffusion Panel |
| Panel Size | 40 × 60 cm (17.76 × 23.7 in) |
| Panel Power Consumption | 2 W (0–28 V AC input) |
| Net Weight | ~0.25 kg |
| Diffusion Control | Motorized; Level Mode (0–100%) & Light Reduction Mode (–0.1 to –2 EV) |
| Power Options | V-mount, NP-F batteries, USB-C |
| Runtime | ≤20 h continuous on 100 Wh V-mount battery |
| Control Interfaces | On-board controller, Bluetooth (via app), DMX, CRMX (depending on version) |
| Frequency Sync | Patented frequency-adjust tech for flicker-free use up to 300 fps |
| Weather Resistance | IP54-rated, suitable for outdoor conditions |

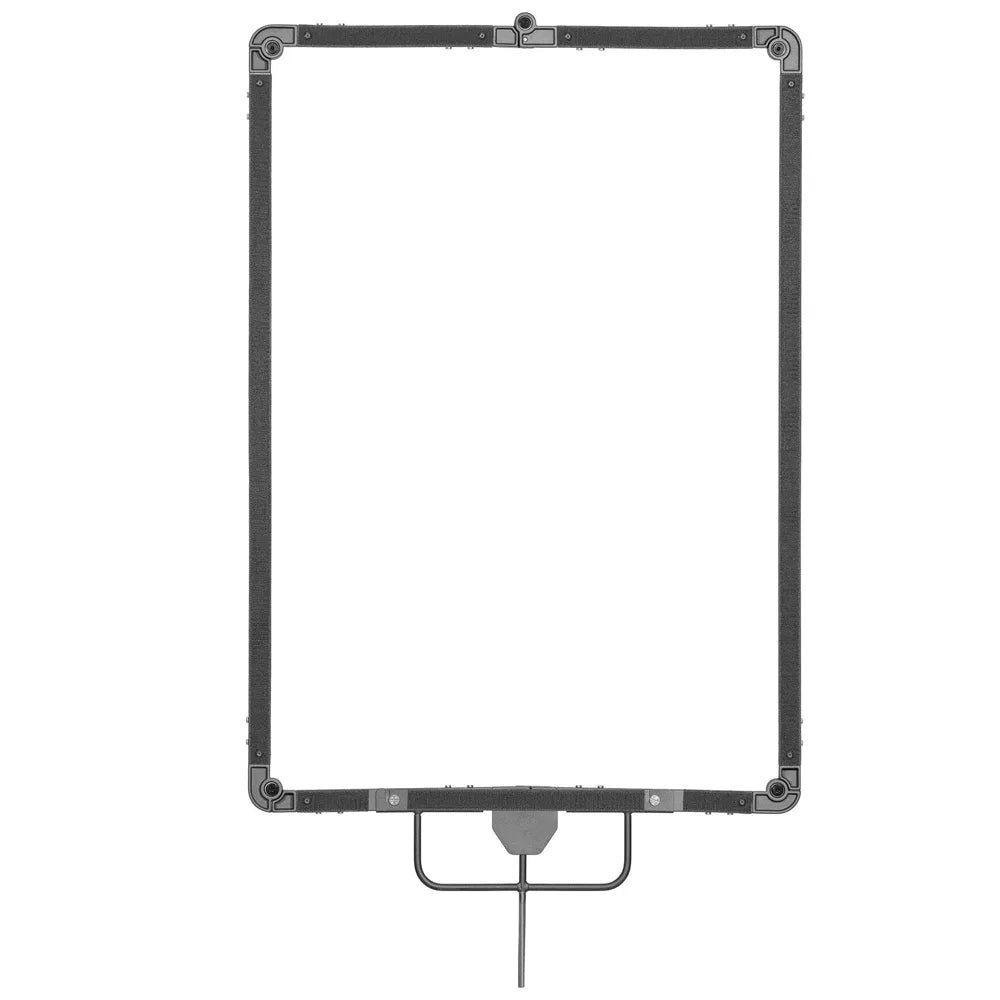

| Frame Type | Foldable; diffusion panel attaches via hook-and-loop |
| Case Included | Padded soft case for transport and protection |
