Canon EOS R5 Mark II Body Only Full Frame Mirrorless Camera
R5IIBODY
Back illuminated stacked CMOS sensor
A new approx. 45mp full frame back illuminated stacked CMOS sensor delivers faster readout speeds for reduced rolling shutter distortion and better image quality with less noise compared to front illuminated sensors.
Next generation autofocus
Track moving subjects with precision and ease like never before. Deep learning algorithms are applied for a range of subjects and Register People Priority mode allows you to register and prioritise people to ensure your primary subject is the focus of attention.
Cinema EOS compatibility
Shoot at up to 8K 60p RAW Light video with a range of Cinema EOS level options such as Custom Picture, Canon Log 2, Canon Log 3 and proxy recording. The EOS R5 Mark II provides professional level movie capabilities to for users who require premium quality.
Capture rare and fleeting moments
The EOS R5 Mark II shoots RAW bursts of up to 30 frames per second with 0.5 second pre-continuous shooting, helping you capture the decisive moment in sharp focus even before you’ve pressed the button. Capture scenes from 3 or 5 seconds before recording in video.
RF lenses for greater possibilities
RF lenses enable richly expressive, high-quality imaging. The high-speed communication capabilities of the RF mount makes operation intuitive and stress-free. Co-ordinated control of camera and lens IS via RF mount communication achieves powerful image stabilisation.
Features:
In-camera image upscaling
Upscale JPEG or HEIF images post shooting to approx. 179MP. Combine with in-camera cropping to isolate subjects. More resolution on hand when you need it.
Eye Control AF
Sensors in the electronic viewfinder track the movement of the photographers’ eye which enables the user to quickly change tracking to a different subject.
LP-E6P battery
New high-powered battery extends shooting times and powers many new features which have high processing power requirements.
Fast continuous shooting
Shoot continuous RAW bursts at up to 30 frames per second with AF/AE tracking between each frame.
Canon Log 2 & Canon Log 3
Canon Log 2 & Canon Log 3 are included to ensure a wide dynamic range. Canon Log 2 enables shooting with dynamic range of up to 16 stops.
4K 120p recording
Supports up to Full HD 240P and 4K 120P* recording. This lets users capture scenes with fast movement, such as sports and concerts.
Optional cooling fan
Cooling fan CF-R20EP (sold separately) can be attached to the EOS R5 Mark II to enable longer shooting times when filming in high quality 8K and 4K movie modes.
Neural Network Noise Reduction
Applies deep learning to generate images with reduced noise when processing RAW images in camera, without the need for external computer or software. This can be combined with in-camera image upscaling to produce an image with less noise and higher resolution.
In-body image stabilisation
Co-ordinated Control Image Stabilization is now improved to 8.5 stops at centre and 7.5 stops at peripheral.*¹*²
*¹ Based on the CIPA 2024 standard. Yaw/Pitch/Roll image stabilization performance, when using RF24-105mm F2.8 L IS USM Z (f=105mm)
*² For supported lenses, please see "Supplemental Information" for EOS R5 Mark II on the website "cam.start.canon"

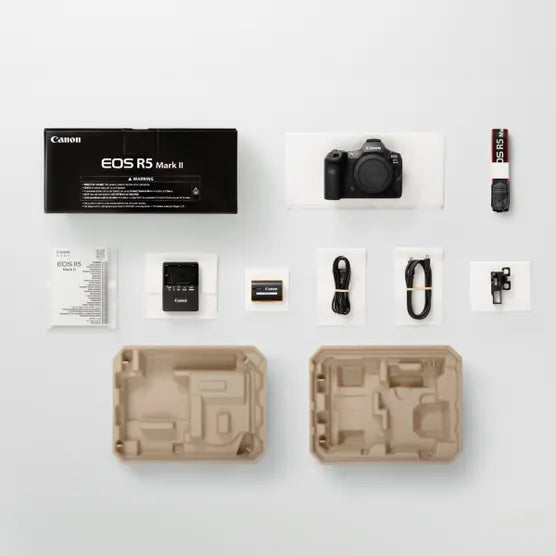

What's in the box
Canon EOS R5 Mark II Mirrorless Camera
Specifications
| Type | |
| Lens mount | RF mount |
| Image processor | DIGIC Accelerator, DIGIC X |
| Compatible lenses | RF/RF-S lenses (EF/EF-S lenses with EFEOS R) |
| Image sensor | |
| Screen size | Full frame |
| Effective pixels (max. approx. megapixels) | Approx 45mp |
| Back-illuminated stacked | Yes |
| Recording media | |
| Card slot | Dual slots: Card 1:CFexpress |
| Card 2: SDXC/SDHC/SD (UHS-II supported) | |
| Record function + card/folder selection | Card 1: Main, Card 2: Proxy: Yes |
| Still photo recording | |
| Image quality | JPEG/HEIF: Yes / Yes |
| RAW/C-RAW: Yes / Yes | |
| Dual Pixel RAW: ― | |
| JPEG/HEIF image quality | 10 levels for each image size |
| Max. burst for continuous shooting (approx.)*1 | Mechanical shutter / electronic 1st-curtain: JPEG Large*2: 760 |
| RAW: 230 | |
| Electronic shutter: JPEG Large*2: 200 | |
| RAW: 93 | |
| Movie recording | |
| Format | XF-HEVC S / XF-AVC S |
| Recording format | RAW: Yes |
| HEVC: YCC422 10 bit / YCC420 10 bit | |
| AVC: YCC422 10 bit / YCC420 8 bit | |
| Movie recording size | Resolution: RAW / SRAW / 8K-D / 8K-U / 4K-D / 4K-U / 2K-D / Full HD |
| Frame rate (fps): 236.76 / 200.00 /119.88 / 100.00 / 59.94 /50.00 / 29.97 /25.00 / 24.00 / 23.98 | |
| RAW format: Standard RAW / Light RAW | |
| Compression method:High Quality Intra / Standard Intra / Light Intra / Standard LGOP / Light LGOP | |
| Image quality: Fine / Normal | |
| High Frame Rate movies | With audio / without audio: Yes / Yes |
| Movie cropping | Yes |
| HDR movies | Yes (HDR movie mode) |
| Time-lapse movies | Yes |
| Custom Picture | Yes |
| Audio format | LPCM / 24bit / 4CH, ACC / 16bit / 2CH |
| Built-in microphone | Monaural |
| Pre-recording | Yes |
| Tally lamp | Yes |
| Cooling fan setting | Yes |
| Max. recording time per recording | Normal movies 6 hr.: (59.94 fps or less) |
| HDMI RAW output | Yes |
| Dual shooting (still & movie) | Yes |
| Image creation/processing | |
| Picture Style | Yes |
| Clarity | Yes |
| Auto Lighting Optimizer | Yes |
| Highlight tone priority | Yes |
| Long exposure noise reduction | Yes |
| High ISO speed noise reduction | Yes |
| Lens aberration correction (still photos/movies) | Yes |
| Focus breathing correction (movies) | Yes |
| AF | |
| Focusing brightness range (with an f/1.2 lens,* center AF point, One-Shot AF, at room temperature, and ISO 100) * Except RF lenses with a Defocus Smoothing (DS) coating | Still photos EV -6.5 to 21 |
| 8K 30p: EV -4.5 to 21 (with 29.97 / 25.00 fps) | |
| 4K 30p: EV -3.5 to 21 (with 29.97 / 25.00 fps) | |
| Full HD 30p: EV -4 to 21 (with 29.97 / 25.00 fps) | |
| AF operation | One-Shot AF: Yes |
| AI Focus AF: Yes | |
| Servo AF / Movie Servo AF: Yes / Yes | |
| No. of AF area zones available for automatic selection (max. zones) | 1053 |
| AF area (AF method) | Face + Tracking: ― |
| Spot AF / 1-point AF: Yes | |
| Expand AF area: Yes | |
| Zone AF / Large Zone AF: ― | |
| Flexible Zone AF: Yes | |
| Whole area AF: Yes | |
| Whole area tracking Off: Yes | |
| Servo AF characteristics (still photos) | Case Auto / Manual |
| Subject to detect | Auto: Yes |
| People / Animals / Vehicles: Yes | |
| Eye detection | Auto: Yes |
| Right eye / Left eye: Yes | |
| Register people priority | Yes |
| Action priority | Yes |
| Eye Control AF | |
| Line-of-sight detection sensor (approx. pixels) | 307,000 |
| Viewfinder | |
| Type | Electric viewfinder |
| Screen size | 0.5 inch |
| Dot count (approx. dots) | 5.760,000 |
| Magnification (approx. ×) (lens at infinity, -1 dpt) | 0.76 |
| Coverage (approx. %) | 100 |
| Eyepoint (approx. mm) (at -1 m-1 from eyepiece lens end) | 24 |
| Dioptric adjustment (approx. dpt) | -4.0 to +2.0 |
| Viewfinder brightness | 6 levels |
| Screen | |
| Screen size | 3.2 inch |
| Dot count (approx. dots) | 2,100,000 |
| Screen brightness | 7 levels |
| Vari-angle | Yes |
| Display settings | |
| Display simulation | Yes |
| Optical viewfinder simulation (View assist) | Yes |
| Waveform monitor setting (movies) | Yes |
| HDMI output | |
| HDMI resolution | Auto / 1080p / 1080i |
| Shooting mode | |
| Still photo shooting | A+ / Fv / P / Av / M / Tv / BULB / C1 / C2 / C3 |
| Movie recording | A+ / P / Av / M / Tv / C1 / C2 / C3 |
| Exposure control | |
| No. of metering sensor zones (still photos) | 6144 zones (96×64) |
| Metering brightness range (at room temperature, ISO 100) | Still photos: EV -3 to 20 |
| Movies: EV -1 to 20 | |
| Anti-flicker shooting | Yes |
| High-frequency anti-flicker shooting | Yes |
| False color (movies) | Yes |
| ISO speed (still photos) | Normal speed: 100 to 51200 |
| Expanded speed (max. ISO equivalent): L: 50, H: 102400 | |
| ISO speed (movies) | Normal speed: 100 to 25600 (Custom Picture: Off) |
| Expanded speed (max. ISO equivalent): H: 51200 (Custom Picture: Off) | |
| Shutter | |
| Shutter speed (sec.) (still photos) | Mechanical shutter / electronic 1st-curtain: 1/8000 to 30 |
| Electronic shutter: 1/32000 to 30 | |
| Max. shutter speed (sec.) (movies) | Electronic shutter: 1/8000 |
| Flash sync speed (sec.) | Mechanical shutter: 1/200 |
| Electronic 1st-curtain | 1/250 |
| Electronic shutter | 1/160 |
| Sync speed priority | Yes |
| Durability (with mechanical shutter) | 500,000 cycles |
| Silent shutter function | Yes |
| Other shooting modes | |
| Multiple-exposure shooting | Yes |
| Saving multiple-exposure image | JPEG Large |
| HDR shooting PQ (Still photos / movies) | Yes / Yes |
| Focus bracketing | Yes |
| Image stabilisation function | |
| Camera in-body IS | Yes |
| Coordinated control | Yes |
| IS effectiveness, in number of stops (still photos) | Center: 8.5 stops, Periphery: 7.5 stops |
| * Yaw, pitch, and roll correction performance, as based on CIPA2024 standards | |
| * RF24-105mm F2.8 L IS USM Z (coordinated control), f=105 mm | |
| Movie digital IS | Yes |
| Peripheral coordinated control | Yes |
| Continuous Shooting | |
| Continuous shooting speed (high-speed continuous shooting +, max. approx. shots/sec.) | Mechanical shutter: 12 |
| Electronic 1st-curtain: 12 | |
| Electronic shutter: 30 | |
| Pre-continuous shooting | Yes |
| Blackout-free display | Yes |
| Playback Blur / out-of-focus image detection | Yes |
| VR preview | Yes |
| Image processing after shooting | |
| RAW image processing | Yes |
| Neural network Noise Reduction | Yes |
| Dual Pixel RAW processing | ― |
| In-camera upscaling | Yes |
| Customized controls | |
| Customize buttons for shooting/playback | Yes / Yes |
| Customize dials/control ring | Yes |
| External interface | |
| Digital terminal USB | Type-C |
| HDMI output terminal | Type A |
| External microphone input terminal | Yes |
| Headphone terminal | Yes |
| Multi-function shoe | Yes |
| Power source | |
| Battery | LP-E6P |
| USB power source support | Charging / camera power supply: Yes / Yes |
| AC power source | PD-E2 + DR-E6P |
| Available shots*3 (with power saving, approx. shots at +23℃ / 73℉) | Viewfinder: 340 |
| Screen: 630 | |
| Dimensions and weight | |
| Dimensions (approx. width × height × depth)*3 | 138.5×101.2×93.5 mm |
| Weight (approx. including battery and CFexpress card)*3 | 746 g |
| VR | |
| Support for RF5.2mm F2.8 L DUAL FISHEYE | Yes |
| Communication functions | |
| Wi-Fi (wireless LAN) | Wi-Fi: Equivalent to IEEE 802.11b/g/n/a/ac/ax |
| MIMO: Yes | |
| Transmission frequency (Center frequency): 2.4 GHz / 5 GHz / 6 GHz | |
| Bluetooth | Bluetooth Specification Version 5.3 |
| USB | Equivalent to USB 10 Gbps (SuperSpeed Plus USB / USB 3.2 Gen 2) |
| Access point auto switch | Yes |
| Automatic switching of communications settings | Yes |
| FTP transfer (wireless LAN / wired LAN) | Yes |
| Live streaming services (wireless LAN) | Yes |
| Video calls / live streaming (USB connection) | Yes |
| Dust and weather sealing | Yes |
